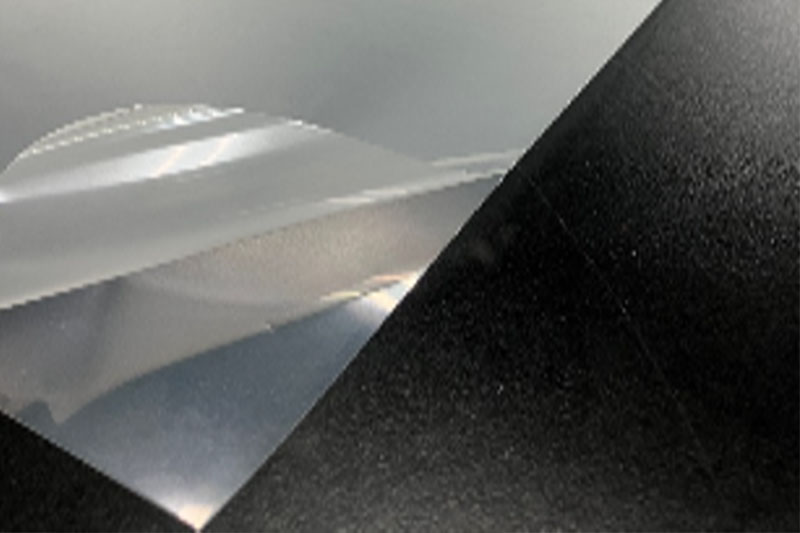

Feature of ARTPLY™ CF

ARTPLY™ CF is extremely soft film compared with typical PP film. It adheres strongly to various materials without primer or adhesive.

Adhesiveness with various materials

ARTPLY™ CF adheres well to the various materials without adhesive.
It can adhere only with heat and pressure.

Improvement of impact resistance

It is confirmed to improve impact resistance, vibration damping and acoustic damping when ARTPLY™ CF is put between prepreg. Also, it is expected to bring same effect to other materials.

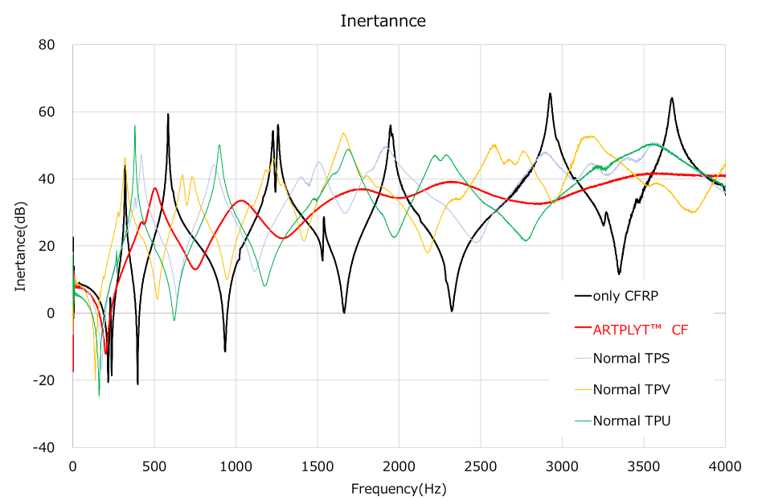

Frequency response characteristic

Comparison between CFRP alone and ARTPLY™ CF laminated with CFRP.
It can be confirmed that the ARTPLY™ CF laminate has fewer resonance points compared to CFRP alone and other elastomers.
This not only shortens the time it takes for vibrations to dampen, but also has the effect of suppressing resonance.

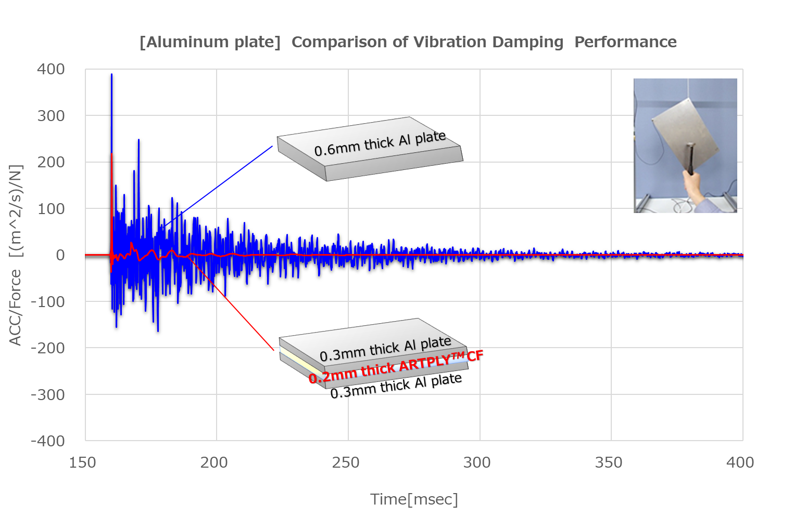

Vibration Damping Properties by Hammering Test

Comparison between aluminum plate alone and ARTPLY™ CF laminated with aluminum plate laminated.
Compared to aluminum sheets alone, ARTPLY™ CF laminates have better acoustic damping properties.

SAMPLE Specification/Item composition as of July.1, 2025: ( We increase the variety of specification. )

Composition

Please don’t hesitate to ask sample
